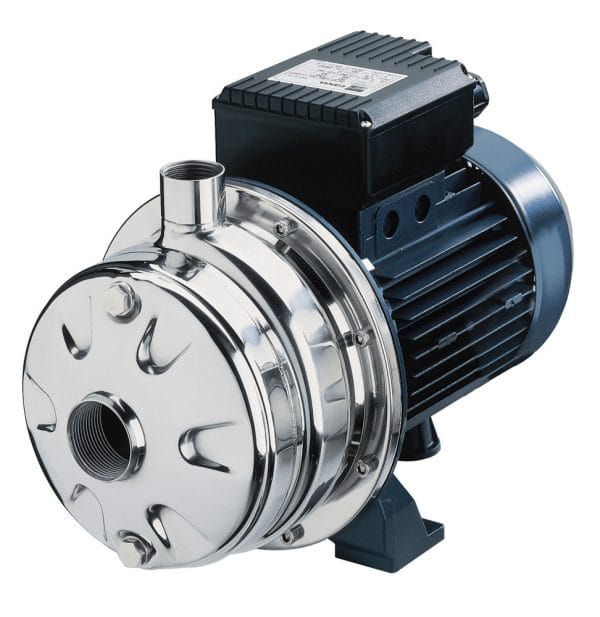

Ebara 2CDX M Centrifugal Pumps 230v

The Ebara 2CDX M dual impeller centrifugal electric pump in AISI 304 Stainless Steel.

The 2CDX M pump is ideal for domestic pressure boosting, small-scale garden irrigation, washing, treating water, cooling towers and also moving clean water in general.

Although small dimensions, this pump has a strong structure.

Ebara 2CDX M Pump Technical Data

• Maximum working pressure: 8 bar;
• G1¹/₂ suction connection for 2CDX 200 and G1¹/₄ for the rest of the range;
• G1 discharge connection.

Ebara 2CDX M Motor Technical Data

• Self-ventilated 2 pole asynchronous motor;
• Class of insulation: F while the protection degree is IP55;
• Permanent capacitor inserted and also thermo-amperometric protection with automatic rearm incorporated for the single phase motor;
• Protection is under the user’s responsibility for the three phase version.

Materials

The pump casing, impeller, shaft, diffuser and seal housing disc are all manufactured in AISI 304.
