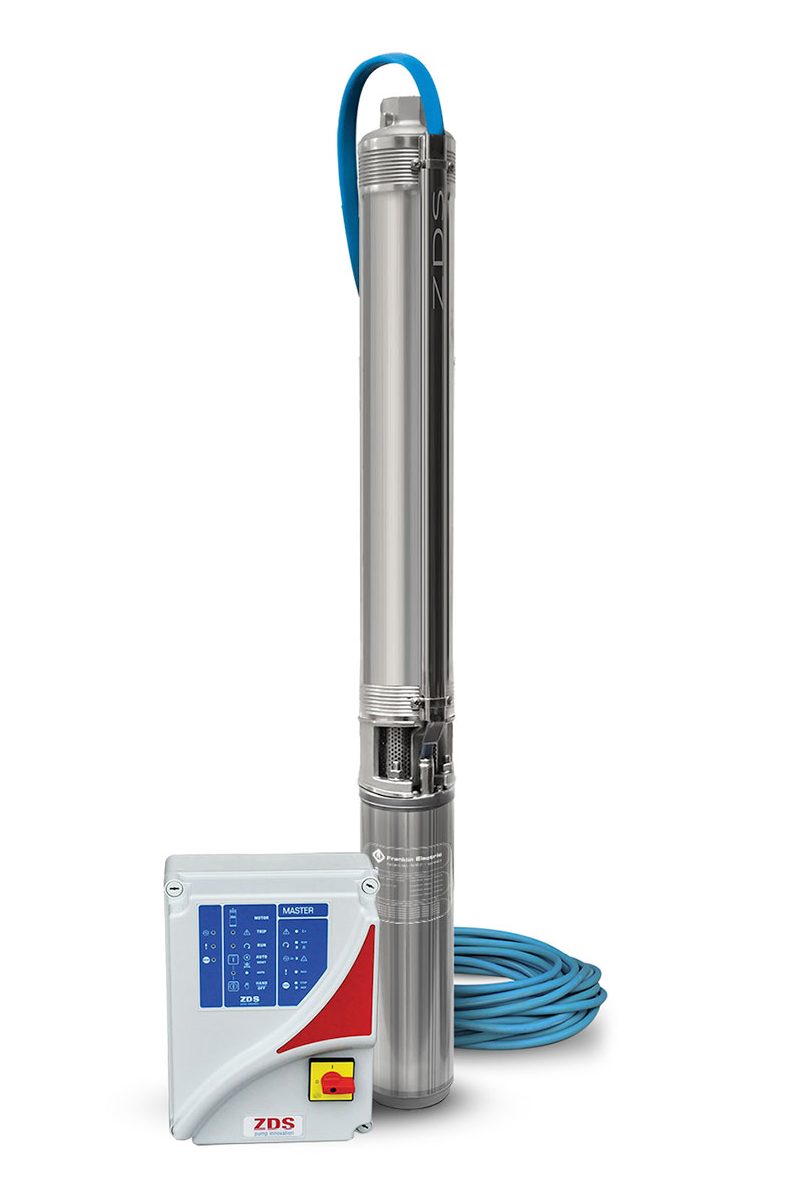

ZDS 400v 4″ E.HTF Complete Solution with Franklin Motor

4″ HTF complete solution made consisting of a ZDS stainless steel hydraulic part, ZDS Master 3 control panel, three-phase encapsulation water-cooled Franklin motor and supply cable. The E.X.HTF complete solution is manufactured to ISO 9001 standards and is available up to the maximum delivery of 15.000 l/h and 300 m head.

ZDS Pumps Innovation Submersible Pumps Official Reseller UK

£807.00£53,400.09

ZDS Pump 4″ HTF complete solution consists of a ZDS stainless steel hydraulic part, ZDS Master 3 control panel, three-phase encapsulation water-cooled Franklin motor and also a 1.5m supply cable. The E.X.HTF complete solution is manufactured to ISO 9001 standards. This model is available up to the maximum delivery of 15.000 l/h while the head is 300m.

The advanced technology and also the settings of the ZDS Master 3 control panel guarantees the best accuracy of working in every voltage condition. The ZDS Master 3 control panel is extremely precise. It is set according to technical data of the selected hydraulic and motor. The control panel is ready to use and protect the pumps against abnormalities in the installation and also many other faults. The pump is completely protected against lack of water in the well or in the tank. In the case of any dry running, the Master 3 control panel stops the pump and a light starts to flash to inform the user that there is no more water in the well.

The Master 3 control panel also protects against overland, low/high voltage, against leaks in the installation and too frequent starts and stops, against electrical abnormalities and finally against failures in a three-phase plant.

This pump is designed for use in lifting, distribution, pressurisation in civil and industrial water systems, garden irrigation systems, filling of pressure vessels and tanks, fire-fighting systems, washing systems, drainage systems and also for the supply to fountains.

Specification of E.HTF ZDS 4″ Submersible Pump

  • kW: 0.37 – 5.5;
  • Degree of protection: IP 68;
  • Maximum quantity of suspended sand: 120 g/m3;
  • Insulation: B;
  • Rated ambient temperature: max 30oC;
  • Cooling flow: min 8 cm/sec;
  • Maximum starts per hour: 150, equally distributed;
  • Mounting: vertical/horizontal, shaft upwards;
  • Maximum immersion depth: 150 m;
  • Outlet diameter: 11/4” G-F, 2″ G-F;
  • Allowed range of water pH: 6.4 – 8.0.

The team at Peel Pumps have years of experience in the pump industry. If you therefore cannot find what you are looking for or you require some technical assistance then please do not hesitate to contact a member of our helpful team on 01706 558 352. Alternatively you can email us on sales@peelpumps.co.uk. We will endeavour to respond to you as quickly as possible.

Download Datasheet

WeightN/A
ZDS HTF Complete Solution

E.X.1-12.HTF, E.X.1-18.HTF, E.X.1-25.HTF, E.X.1-36.HTF, E.X.1-50.HTF, E.X.10-12.HTF, E.X.10-17.HTF, E.X.10-23.HTF, E.X.10-31.HTF, E.X.10-8.HTF, E.X.2-12.HTF, E.X.2-16.HTF, E.X.2-24.HTF, E.X.2-32.HTF, E.X.2-40.HTF, E.X.2-48.HTF, E.X.2-8.HTF, E.X.3-13.HTF, E.X.3-19.HTF, E.X.3-25.HTF, E.X.3-32.HTF, E.X.3-39.HTF, E.X.3-45.HTF, E.X.3-51.HTF, E.X.3-6.HTF, E.X.3-9.HTF, E.X.5-13.HTF, E.X.5-17.HTF, E.X.5-21.HTF, E.X.5-25.HTF, E.X.5-29.HTF, E.X.5-34.HTF, E.X.5-38.HTF, E.X.5-4.HTF, E.X.5-45.HTF, E.X.5-6.HTF, E.X.5-8.HTF, E.X.8-12.HTF, E.X.8-17.HTF, E.X.8-20.HTF, E.X.8-23.HTF, E.X.8-27.HTF, E.X.8-31.HTF, E.X.8-36.HTF, E.X.8-42.HTF, E.X.8-6.HTF, E.X.8-8.HTF

PDF download datasheet manual

Brand

ZDS Pump Innovation

ZDS Pump Innovation top quality borehole pumps are sold by PEEL Pumps, Authorized distributor in UK. As ZDS Authorized Distributor in UK we have a broad range of ZDS Pumps in our stock for immediate delivery.

Info on ZDS Pumps and Company

ZDS Pump Innovation is a family owned company with more than 40 year’s experience in designing, developing and producing submersible water pumps.ZDS borehole pumps are entirely manufactured in Italy from raw material and they are distributed in over forty countries by more than 100 partners. The company is a producer of motors and hydraulic parts and it has developed a number of innovative products for protecting, monitoring and controlling submersible pumps such as: DRP (Dry running protection), EVO Plug (for monitoring automatic pumps), SLP (protection against voltage picks), E-Panel (for controlling traditional pumps).ZDS has been famous for its floating ring patent technology in the hydraulic parts. They have carried out important tests proving that their hydraulic starts with a very low starting torque and last longer in heavy condition with sand in the borehole. ZDS are all manufactured according to standard ISO 9001:2008 certified by Tuv.

Other ZDS Pump Innovation Info

We offer a 2 years warranty in all ZDS products. If you cannot see the Pump you are looking for listed below, don’t worry, our full catalogue is not on our website, call us on 01706 558352 or contact us for a quote.
