G3 3 inch submersible pump asynchronous motor

Peel Pumps products

£531.43£682.00

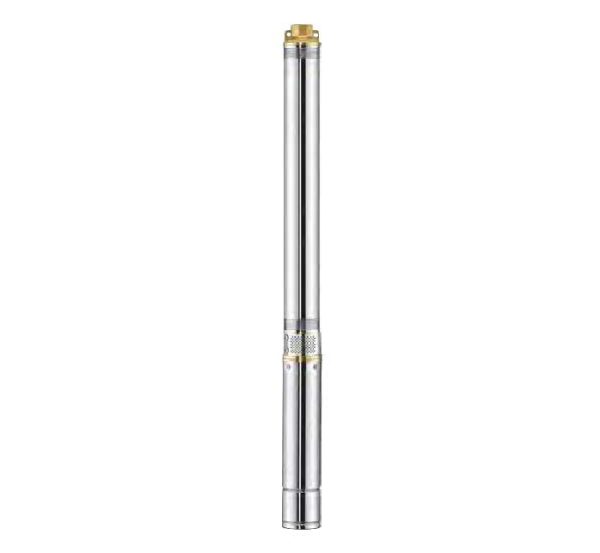

G3 is a 3 inch submersible pump used for reservoirs or domestic and industrial water

A borehole pump is used to extract water for domestic/industrial use from a hole in the ground. Boreholes are narrow shafts drilled vertically into the ground to allow the pumping of water from below ground.

The holes are made using a drilling rig that creates a borehole with specific dimensions so that the borehole pump can fit through with very little clearance on all sides.

Our 3” Borehole pumps are usually installed in 10m to 80m deep well and are the only water supply available in many rural areas in UK. The flow provided from our 3” borehole pumps go from 10 to 85 litres per minute depending on the Dynamic water level in the well.

Our G3 pumps are used in well of minimum 76 mm diameter, for this reason they can be used in 3” borehole or in 4“boreholes that become smaller over time due to ochre deposits.

How to select the correct borehole pump for your application? Click here

Thanks to the pump body’s AISI 304 Stainless Steel construction, our G3 borehole pumps are constructed to withstand corrosion and offer a long, durable service life.

All of our G3 models, come with external control box and capacitor for easy servicing.

The motor power available are:  0.55 kW, 0.75 kW 1.1 kW 230 V single phase. Capacitor included

The Total head goes from 47 m to 94 meters, depending on the model of pump selected.

SKU: N/A Categories: ,

PDF Datasheet Download

Motor Power

, ,

G3_Datasheet_3_inches_borehole_pump.pdf
