TELLARINI GAM 8/24L TANK-230V
This range of pressure boosting pump sets has been designed to provide a constant water pressure regardless of fluctuating supply and demand.Pressure sets are based on the JIM and JIT self priming, stainless steel pump ranges and are suitable for domestic, industrial and agricultural clean water applications up to 60°C.
Application Features Of Tellarini GAEM 8/24L TANK-230V

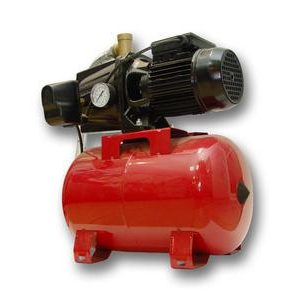

The system includes pump, 24 litre steel pressure tank, flexible hose, pressure switch, pressure gauge,5-way brass connection, and a short power lead.
Application Of Tellarini GAEM 8/24L TANK-230V
– Maximum operating pressures to 6 Bar with typical applications
– including boosting low mains pressure;
– working in conjunction with holding tanks and wells;
– storing water under pressure to cope with peak demand.
– Pump body: AISI 304 Stainless Steel
– Shaft: AISI 316 Stainless Steel
– Diffuser all models: Thermoplastic
– Impeller models 5, 6 and 8: Thermoplastic
– Impeller model 12: AISI 304 Stainless Steel
– Mechanical Seal: Ceramic/ Graphite/NBR
– Continuous duty, 2800rpm motors with Class F
– insulation, IP44 protection.
– GAM 230/1/50 with inbuilt thermal protection. Alternative GAT 400/3/50
