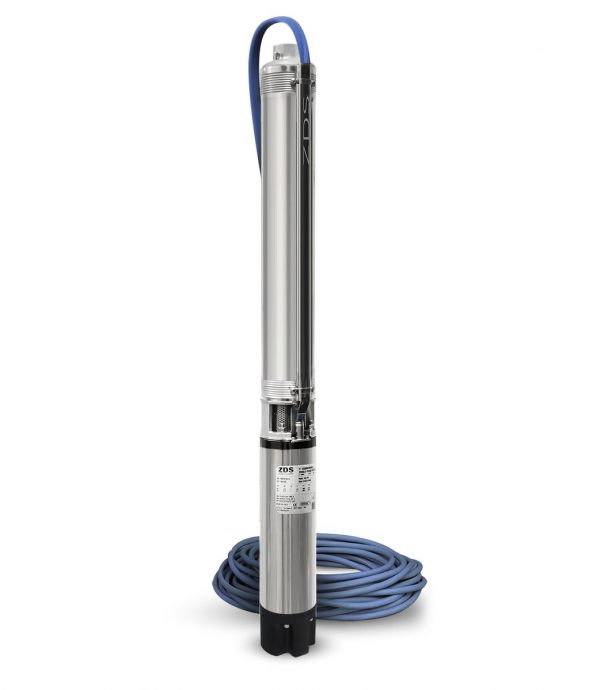

ZDS 230v 4″ H2 Complete Solution with Start and Run Capacitor

4″ H2 complete solution made from ZDS stainless steel hydraulic part, 2-wire single-phase encapsulated water-cooled H2 motor and supply cable. These H2 complete solutions are manufactured to ISO 9001 standards and are available to the maximum delivery of 11.000 l/h and 220 m head. The start and run capacitor is already integrated in the motor.

ZDS Pumps Innovation Submersible Pumps Official Reseller UK

£490.78£849.40

Clear

4″ H2 ZDS 230v complete solution made from ZDS stainless steel hydraulic part, 2-wire single-phase encapsulated water-cooled H2 motor and also 1.5m supply cable as standard. These H2 complete solutions are manufactured to ISO 9001 standards and are available to the maximum delivery of 11.000 l/h while the head is 220m. The start and run capacitor is already integrated in the motor. The X.H2 model is designed to be used in the following applications: lifting, distribution, pressurisation in civil and industrial water systems, garden irrigation systems, filling of pressure vessels and tanks, fire-fighting systems, washing systems, drainage systems and finally supply of fountains.

Specification

  • kW: 0.37 – 1.1;
  • Degree of protection: IP 68;
  • Maximum quantity of suspended sand: 120 g/m3;
  • Insulation: F;
  • Rated ambient temperature: max 30oC;
  • Cooling flow: min 8 cm/sec;
  • Maximum starts per hour: 150, equally distributed;
  • Mounting: vertical/horizontal, shaft upwards;
  • Maximum immersion depth: 150 m;
  • Outlet diameter: 11/4” G-F, 2″ G-F;
  • Allowed range of water pH: 6.4 – 8.0.

The complete solution is available with or without DRP.

The team at Peel Pumps have years of experience in the pump industry, if you therefore cannot find what you are looking for or you require some technical assistance then please do not hesitate to contact a member of our helpful team on 01706 558 325. Alternatively you can email us on sales@peelpumps.co.uk. We will endeavour to respond to you as quickly as possible.

Weight N/A
ZDS H2 Complete Solution

X.1-12.H2, X.1-12.H2 DRP, X.1-18.H2, X.1-18.H2 DRP, X.1-25.H2, X.1-25.H2 DRP, X.1-36.H2, X.1-36.H2 DRP, X.1-8.H2, X.1-8.H2 DRP, X.2-12.H2, X.2-12.H2 DRP, X.2-16.H2, X.2-16.H2 DRP, X.2-24.H2, X.2-24.H2 DRP, X.2-5.H2, X.2-5.H2 DRP, X.2-8.H2, X.2-8.H2 DRP, X.3-13.H2, X.3-13.H2 DRP, X.3-19.H2, X.3-19.H2 DRP, X.3-6.H2, X.3-6.H2 DRP, X.3-9.H2, X.3-9.H2 DRP, X.5-13.H2, X.5-13.H2 DRP, X.5-4.H2, X.5-4.H2 DRP, X.5-6.H2, X.5-6.H2 DRP, X.5-8.H2, X.5-8.H2 DRP, X.8-6.H2, X.8-6.H2 DRP, X.8-8.H2, X.8-8.H2 DRP
