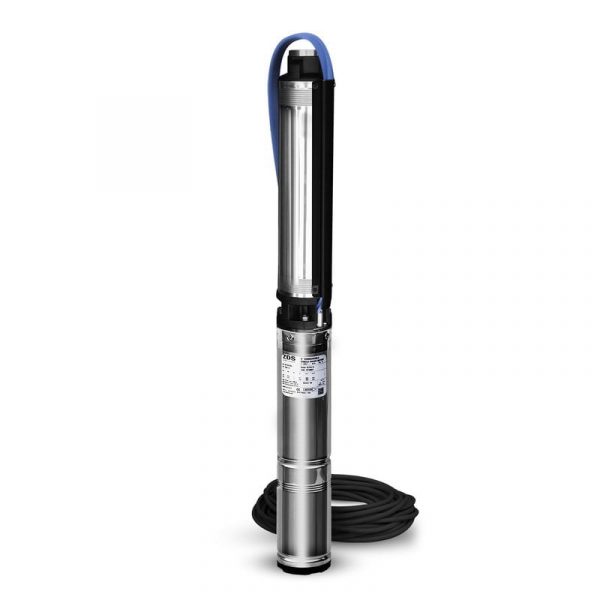

ZDS QPGo 2-16 | 4 inches 230V Borehole Pump

ZDS QPGO 4″ single-phase submersible pump with start and run capacitor integrated in the oil-cooled motor available with or without DRP device. These complete solutions are manufactured to ISO 9001 standards. The 02 motor does not require a start and run control box as the capacitor is built into it. This complete solution is designed to be used in applications such as lifting, distribution and pressurisation in civil and industrial water systems, garden irrigation systems, filling of pressure vessels and tanks, fire-fighting systems, washing systems, drainage systems and fountain supply.

ZDS Pumps Innovation Submersible Pumps Official Reseller UK



ZDS QPGo 2-16 | 4 inches 230V Borehole Pump

Every ZDS 230v 4″ submersible pump unit of the series has been designed and tested to ensure smooth and also trouble free running for years. That is not to say that you will automatically have a satisfactory supply of water if you install the pump. The actual water pumped will also depend on other factors, such as how much water the well has. Series submersible pumps, unique in its class, protects them from virtually any conceivable problem. Therefore if you have problems with your water supply, be sure to check thoroughly the complete installation, as it is very likely that the problem does not lie with the pump. For instance the water level of the well or a tank may be minimal, a pipe may be obstructed, a pipe fixture could be leaking or there may be problems with the power supply.

Quality in the well – ZDS QPGO X or P

O2 motors are ZDS single-phase submersible motors, oil-cooled, suitable for 4” wells and larger. All motors are manufactured to ISO 9001 standards.

  • 0.55  kW;
  • 220 – 240v / 50Hz;
  • Voltage tolerance: 6% / -10%;
  • Thrust: 1.500N; 2.500N; 4.500N;
  • 4″ NEMA standard dimensions;
  • Motor for permanent split capacitor.

Specification of this great ZDS pump

  • Degree of protection: IP68;
  • Insulation: CI.F;
  • Allowed working PH of water: 6,4-8,0;
  • Rated Ambient temp: max 40oC;
  • Maximum Immersion Depth: 150m;
  • Cooling Flow: min 8 cm/sec;
  • Starts/h: 150;
  • Mounting: vertical/horizontal;
  • Supplied with 1.5m of cable.

The 02: Does not require a control box for starting and running, because the capacitor is built into the motor. Supplied with a stainless steel hydraulic part.

The team at Peel Pumps have years of experience in the pump industry, if you therefore cannot find what you are looking for or you require some technical assistance then please do not hesitate to contact a member of our helpful team on 01706 558 352. Alternatively you can email us on sales@peelpumps.co.uk. We will endeavour to respond to you as quickly as possible.

Weight 20 kg
Pumps Motor

DRP (Dry Running Protection)


Pump Material



Motor Power
